Homelab Rebuild 2026 — Building the Proxmox Cluster and Provisioning It with Terraform

In the last post I laid out the plan for rebuilding my homelab as a small enterprise-style datacenter: five pillars, eight milestones, one blog post per milestone. Milestone 1 is the foundation everything else stands on — three physical boxes turned into a single Proxmox VE cluster, plus the Terraform module that provisions every VM on top of it from now on. This post covers both.

🎯 Goal of this milestone

Two things had to be true before I could touch Active Directory, GitLab, or Kubernetes:

• Three separate HP machines had to become one Proxmox VE cluster, so VMs can be managed, migrated, and backed up from a single pane of glass.
• No VM should ever be clicked into existence again. Every VM — from the domain controller to the Kubernetes control plane — gets created by terraform apply, not by a wizard in the Proxmox UI.

Everything below reflects the cluster as it actually runs today — I pulled the live values straight from the Proxmox API instead of relying on install-day notes.

🖥️ Hardware

Three HP machines, deliberately non-identical — this is recycled hardware, not a matched set:

💽 Installing Proxmox VE

Nothing fancy on the install itself: Proxmox VE 9.2 ISO, written to a USB stick with Rufus, one stick per machine, boot, install, repeat three times. No remote virtual media, no PXE — for three boxes sitting on the same desk, a USB stick is still the fastest path from zero to a running hypervisor.

Each node got a static IP on the 192.168.10.0/24 management network during install (.30, .40, .50 for HP1–HP3), which doubles as the network the cluster and every VM lives on — more on that trade-off below.

🌐 Networking

Each node has a single NIC bridged as vmbr0 (Linux bridge, STP off), which is what every VM’s network_device attaches to later on. A second onboard NIC port exists on the boards but sits unused for now — a candidate for a dedicated storage or corosync network later, but not something a 3-node homelab cluster needs on day one.

That’s also the one deliberate simplification worth calling out: corosync (the cluster’s heartbeat/quorum protocol) runs over the same network as management and VM traffic, using a single ring:

ring0_addr: HP1 = 192.168.10.30
ring0_addr: HP2 = 192.168.10.40
ring0_addr: HP3 = 192.168.10.50

In a production cluster you’d isolate corosync on its own VLAN or NICs so a saturated management network can’t cause spurious quorum loss. For three nodes on a home network with no other traffic competing for bandwidth, that risk is acceptable — it’s on the list of things to revisit if this ever grows past a homelab.

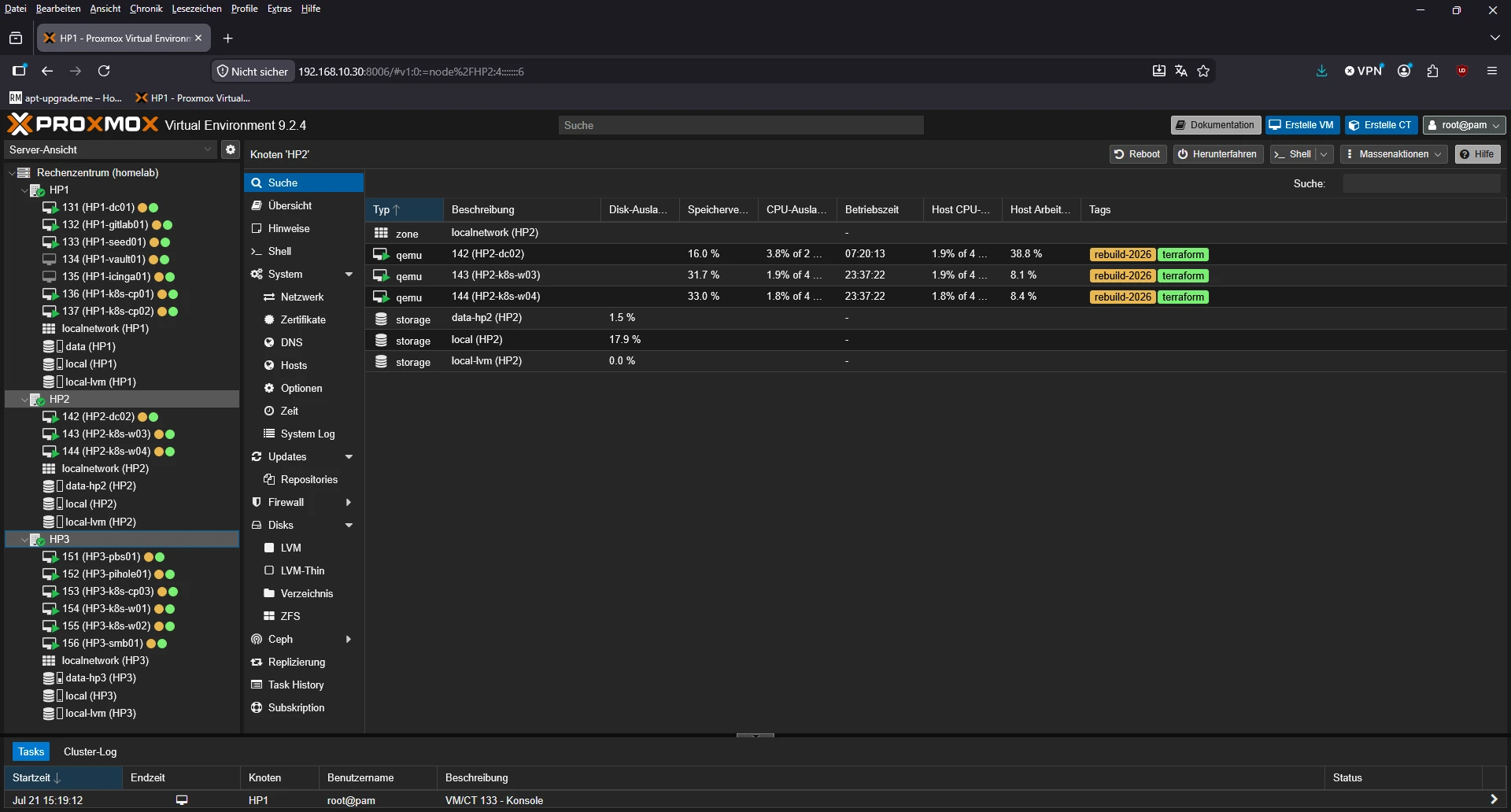

🔗 Forming the cluster

Standard pvecm flow: create the cluster on HP1, then join HP2 and HP3 to it. With three voting members the cluster tolerates exactly one node going offline (2 of 3 votes) before it loses quorum — the minimum viable HA setup, and the reason for going with three nodes instead of two in the first place. Querying the cluster today confirms the happy path held:

$ pvecm status
Cluster name:   homelab
Quorate:        Yes
Nodes:          3

Nodeid  Ip              Name
1       192.168.10.30   HP1 (local)
2       192.168.10.40   HP2
3       192.168.10.50   HP3

🗄️ Storage layout

This is where the three nodes stop being identical. Each node’s second disk (or disks, for HP3) is set up differently on purpose:

• HP1 & HP2: the extra 2 TB SSD is added as plain directory storage (data / data-hp2) — no ZFS, no RAID, just a filesystem for VM disks, ISOs, and backups. Single SSD, nothing to mirror against, so the simplest option wins.
• HP3: three 2 TB disks go into a ZFS pool run as RAIDZ1 (data-hp3), giving just under 4 TB usable with one-disk fault tolerance. This is the node earmarked for anything I don’t want to lose to a single dead drive — think Longhorn replicas or MinIO data once Kubernetes lands.

Every node also keeps its default local (root filesystem) and local-lvm (LVM-thin on the OS SSD) storage from the installer, used for the OS itself and as overflow.

🧱 From ClickOps to Infrastructure as Code

With the cluster up, the tempting next step is to click “Create VM” seven times in the Proxmox UI. I did exactly that in the previous version of this homelab, and every VM ended up slightly different — a forgotten cloud-init setting here, a manually-typed static IP there, no record of what I’d actually done six months later. Not this time: every VM in this rebuild is defined once, in Terraform, and reproducible from a clean cluster.

⚙️ The Terraform module

The module lives in 01_terraform/ in the project repo and uses the bpg/proxmox provider. Rather than mounting an Ubuntu Server ISO and clicking through the installer, every VM is cloned from an Ubuntu 26.04 cloud image and configured entirely through cloud-init — static IP, DNS, SSH key, all of it — so there’s no interactive install step anywhere in the pipeline:

resource "proxmox_download_file" "ubuntu_cloud_image" {
  content_type = "iso"
  datastore_id = var.image_datastore_id
  node_name    = var.proxmox_node
  url          = var.ubuntu_cloud_image_url
  file_name    = "noble-server-cloudimg-amd64.img"
  overwrite    = false
}

resource "proxmox_virtual_environment_vm" "vm" {
  for_each = local.vms

  name        = each.key
  tags        = ["terraform", "rebuild-2026"]
  node_name   = var.proxmox_node
  vm_id       = each.value.vmid

  disk {
    datastore_id = var.vm_datastore_id
    file_id      = proxmox_download_file.ubuntu_cloud_image.id
    interface    = "scsi0"
    size         = each.value.disk_gb
  }

  initialization {
    ip_config {
      ipv4 {
        address = "${each.value.ip}/${var.network_prefix}"
        gateway = var.network_gateway
      }
    }
    user_account {
      username = var.vm_username
      keys     = var.ssh_public_keys
    }
  }
}

All seven VMs — one per role for this milestone — are declared as a single locals.vms map, so adding an eighth VM later is a five-line diff, not a copy-pasted resource block:

VM IDs follow 100 + <last IP octet> (131–137) — Proxmox requires IDs ≥ 100, and this way the ID and the address stay easy to correlate at a glance, without a separate lookup table.

▶️ Rolling it out

The whole rollout is three commands once a Proxmox API token and an SSH key are in place:

cp terraform.tfvars.example terraform.tfvars
# edit terraform.tfvars: API URL, API token, node name, SSH key

terraform init
terraform plan
terraform apply

A couple of minutes later, all seven VMs exist, boot, and answer on their assigned IPs — and Terraform tells you exactly which is which:

Outputs:

vm_ids = {
  "HP1-dc01"     = 131
  "HP1-gitlab01" = 132
  "HP1-icinga01" = 135
  "HP1-k8s-cp01" = 136
  "HP1-k8s-cp02" = 137
  "HP1-seed01"   = 133
  "HP1-vault01"  = 134
}
vm_ips = {
  "HP1-dc01"     = "192.168.10.31"
  "HP1-gitlab01" = "192.168.10.32"
  ...
}

🧩 A few things worth flagging

• Cloud image, not ISO. The Ubuntu ISO sitting on HP1’s local storage is unused by this module on purpose — cloning a cloud image and configuring it via cloud-init is faster and fully unattended. The ISO stays around only for the rare manual install.
• ignore_changes on the disk’s file_id. Without it, Terraform wants to re-import the base image on every plan, since the downloaded file’s ID isn’t meant to be reconciled after the initial clone.
• Secrets never leave the internal repo. terraform.tfvars holds the real API token and SSH key and is gitignored; a pre-push hook actively blocks it from ever reaching the public GitHub mirror of this project, on top of the gitignore.
• State is local, and that’s fine. One operator, one laptop running apply — a remote backend would be solving a problem I don’t have yet.

🔜 What’s next

With a quorate 3-node cluster and a repeatable way to spin up VMs, milestone 2 starts turning HP1-dc01 into an actual domain controller: Active Directory, DNS, and the offline Root CA that everything else in this homelab will eventually trust. That’s the next post.
